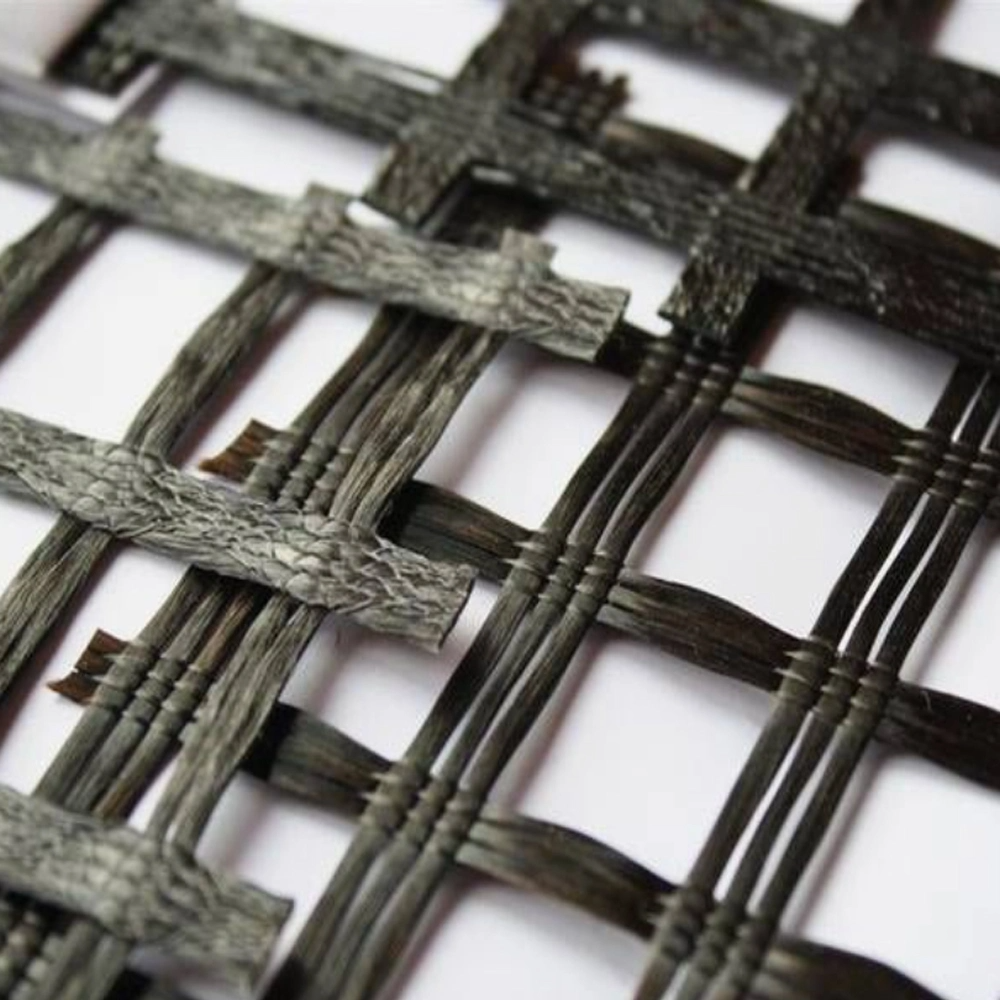

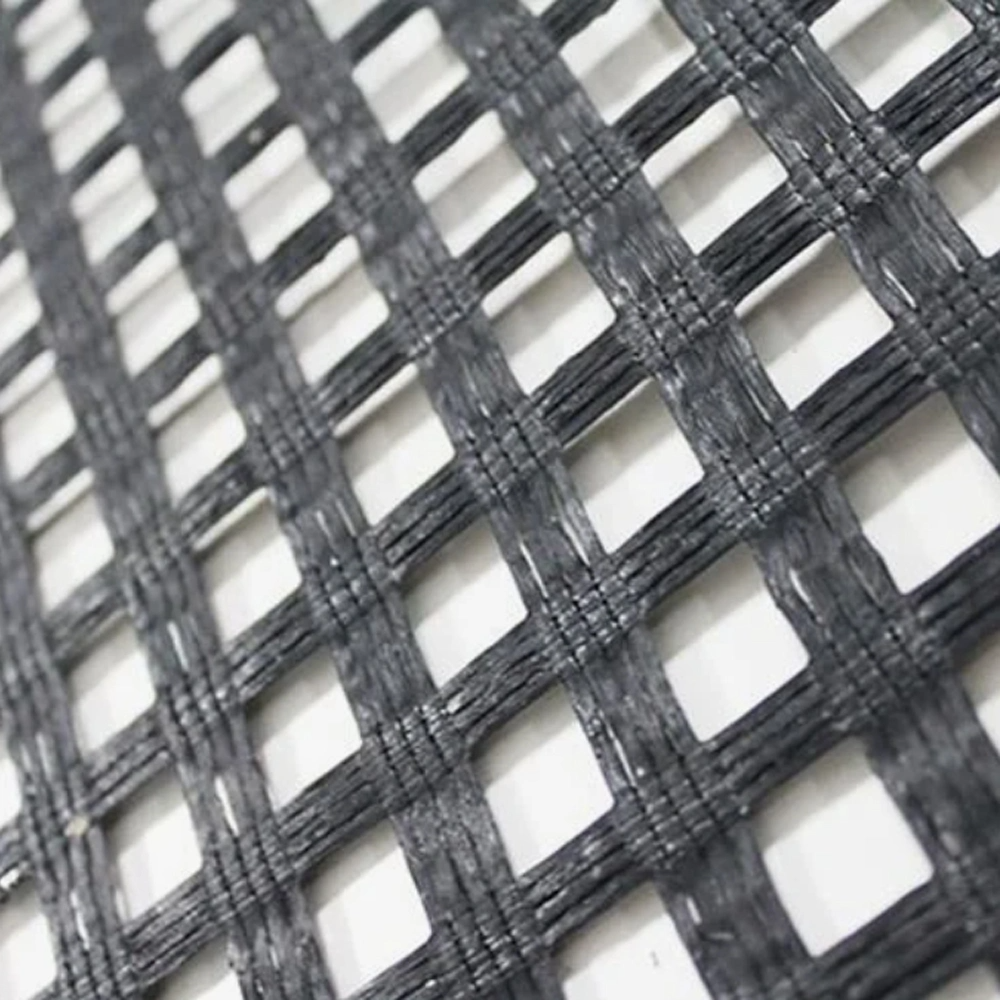

The warp knitted polyester filament geogrid is made of reinforced synthetic filament. The warp knitted oriented structure and the reinforced textile fiament bundle make it to have the uniform structure and high strength.
Features:
1) High tensile strength
2) High tear-resistant
3) Strong combination with gravel and soil

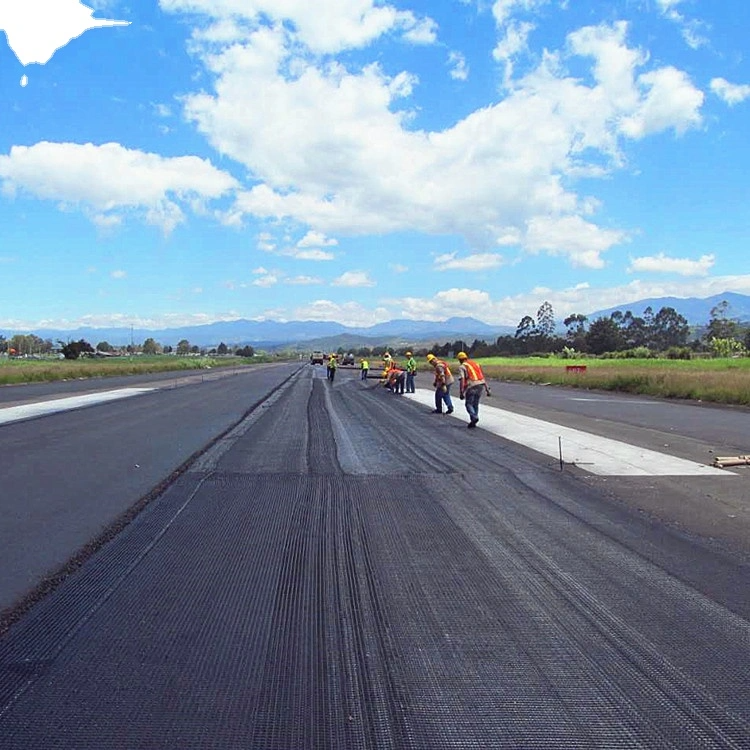

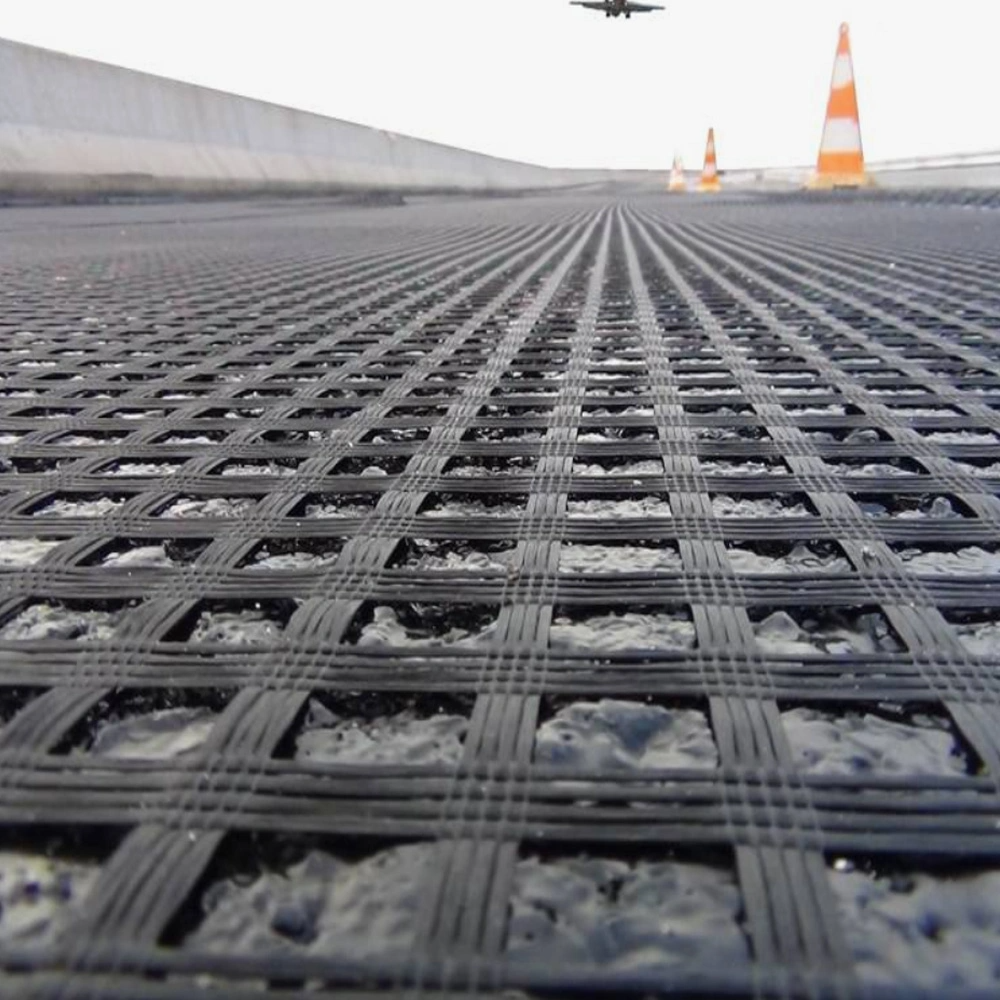

Application: It mainly applied in strengthening soft ground of rail and road
| Item Spec | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS | JBGS |
| 3030 | 5050 | 8080 | 100100 | 120120 | 150150 | 200200 | 300300 | 6030 | 8030 | 10030 | 12030 | 15030 | 20030 | 40050 |
Tensile strength
≥KN/m | weft | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | 60 | 80 | 100 | 120 | 150 | 200 | 400 |
| Warp | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | 30 | 30 | 30 | 30 | 30 | 30 | 50 |
| Elongation ≤ | 0.13 |
| Mesh size（mm） | 25.4×25.4 or50.8x50.8 or 76.2x76.2 |
Notes: Roll width can be 3.95m, 5m, 5.2m,5.95m or as per customized.
