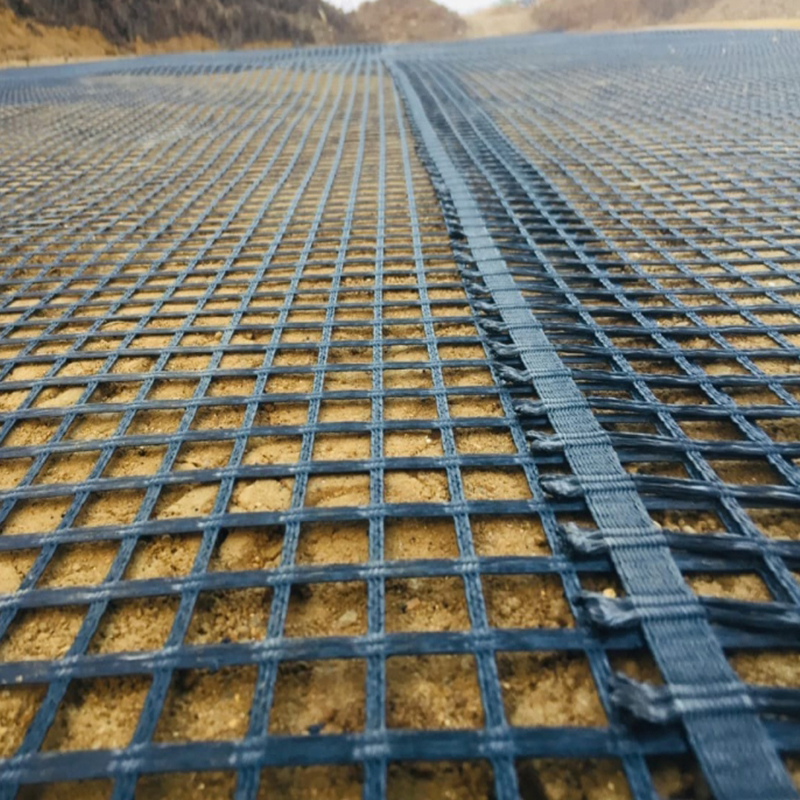

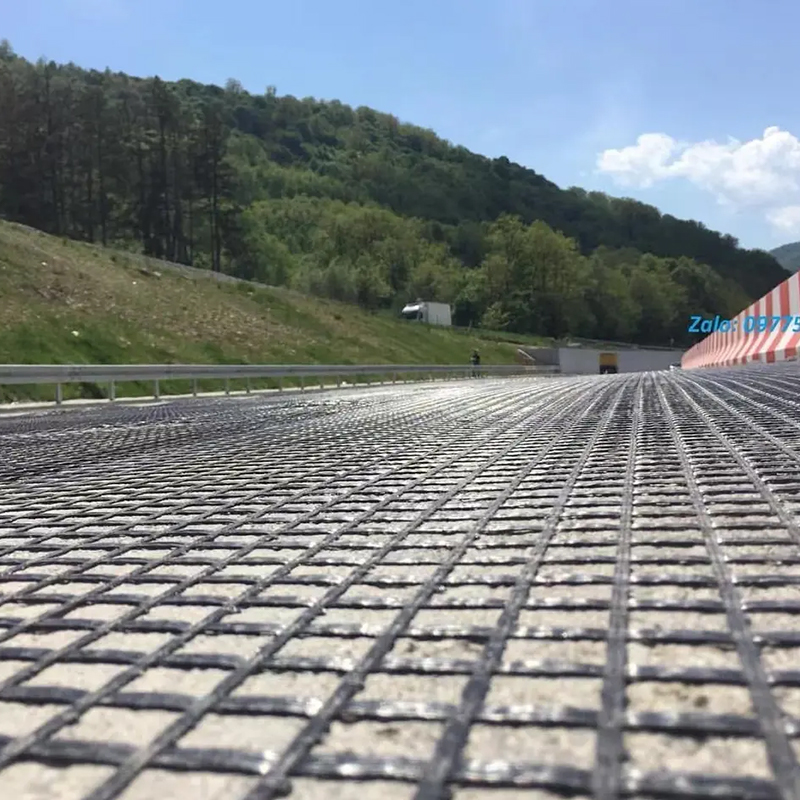

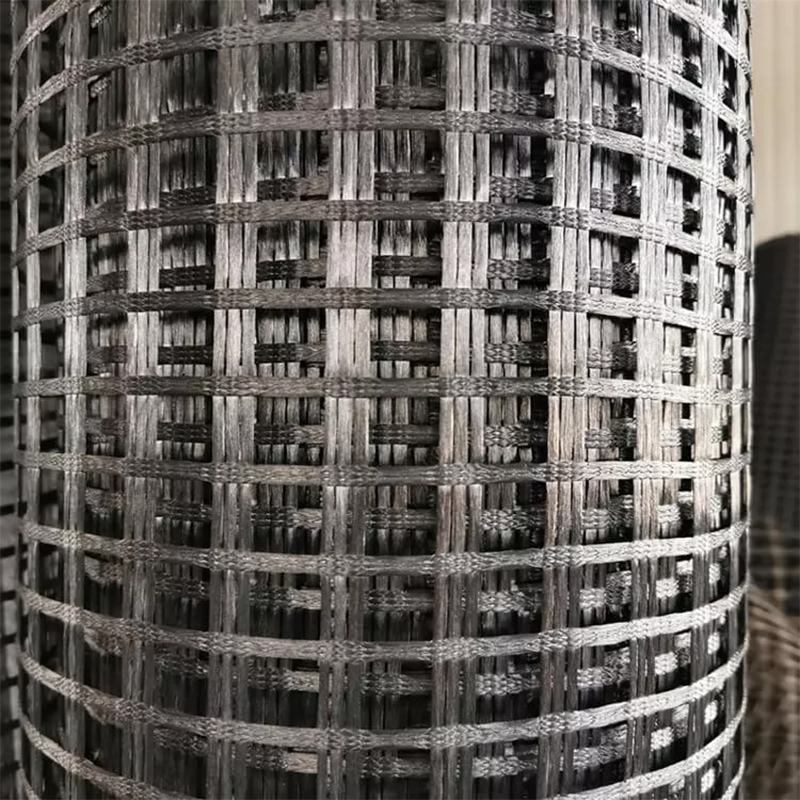

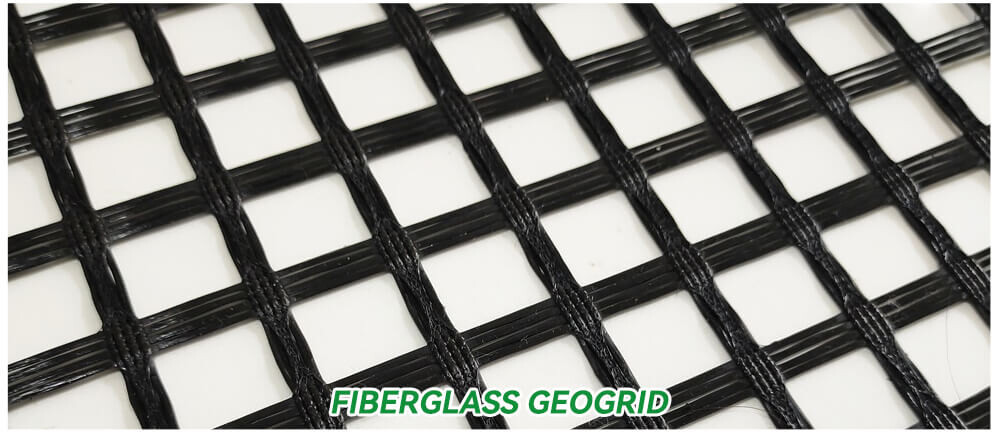

The fiberglass geogrid is made from high strength glass fiber, through warp knitting and weaving and coating treatment. High strength, excellent heat-resistance, light weight and anti-erosion are the features.
| Specification | EGA30-30 | EGA50-50 | EGA80-80 | EGA100-100 | EGA120-120 |
| Mesh size(mm) | 25.4×25.4 Or 12.5×12.5 |
| Breaking strength ≥（KN/m） | Warp direction | 30 | 50 | 80 | 100 | 120 |
| Across warp | 30 | 50 | 80 | 100 | 120 |
| Elongation at break ≤（%） | Warp direction | 3 |
| Across warp | 3 |
| Elasticity modulus(GPA) | 67 |
| Thermal tolerance | -100~280℃ |
| Width | 1~6m |
