Geotextile

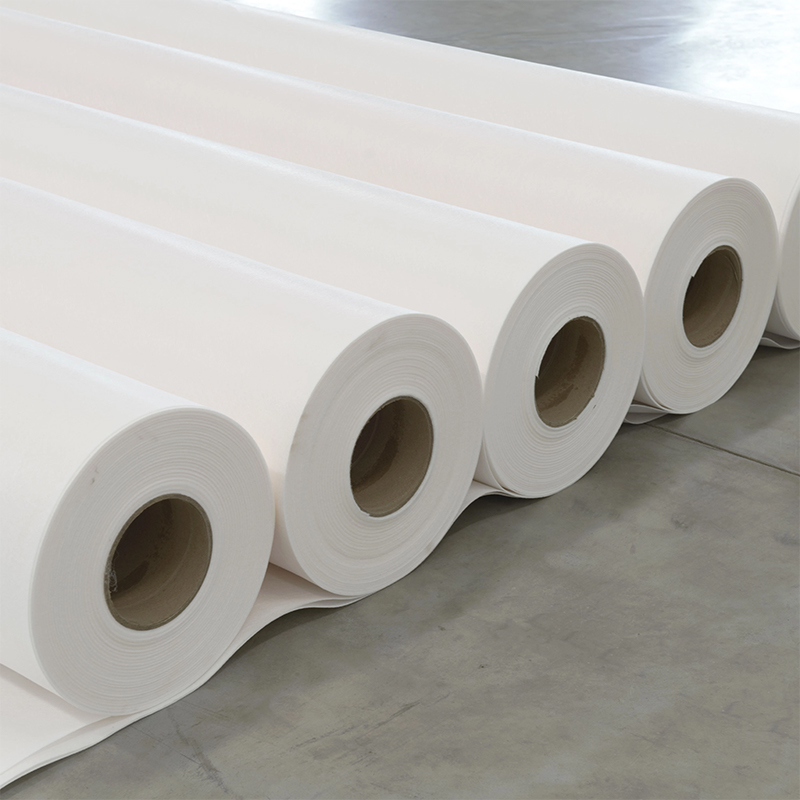

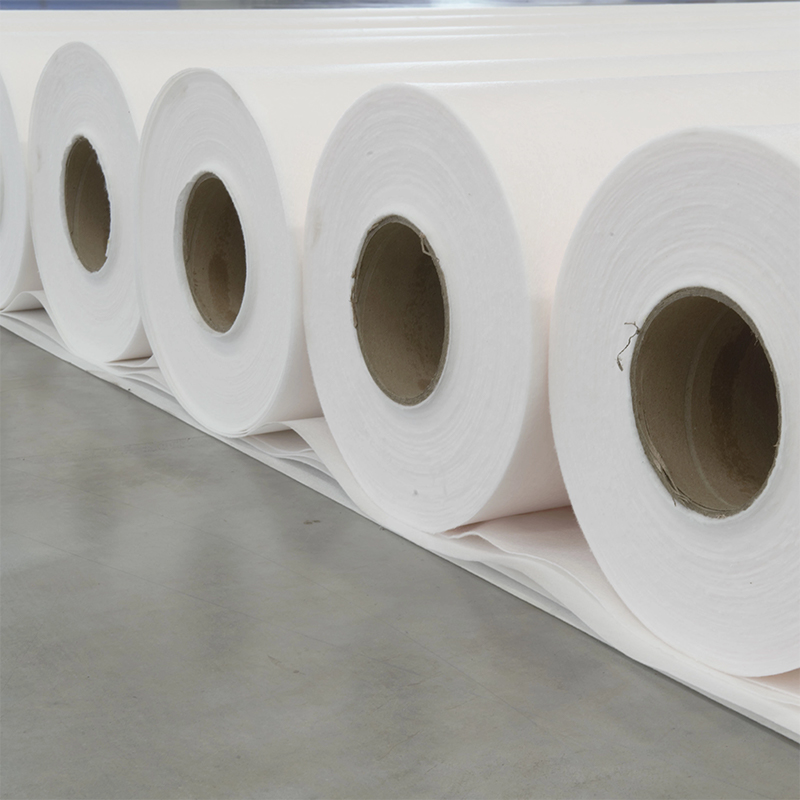

Continuous Filament Geotextile
Made from virgin PET (polyester) chips, the continuous filament was extruded by machine directly through spunbond process. Then punch the continuous filament together to get the stable 3D fabric with higher strength. So it has high strength, good creep property, excellent erosion resistance, aging-resistance and heat resistance.

Made from virgin PET (polyester) chips, the continuous filament was extruded by machine directly through spunbond process. Then punch the continuous filament together to get the stable 3D fabric with higher strength. So it has high strength, good creep property, excellent erosion resistance, aging-resistance and heat resistance.


 PropertiesTest MethodUnitGXSF150GXSF200GXSF300GXSF400GXSF500GXSF600GXSF800GXSF1000
Tensile Strength(MD/TD)ASTM D4595kN/m811202428344850
Tensile Elongation(MD/TD)ASTM D4595%5060606060606060
Grab Tensile Strength(MD/TD)ASTM D4632N520700110015001800220028003000
Grab Elongation(MD/TD)ASTM D4632%5050606060606060
Trapezoidal Tear    Strength(MD/TD)ASTM D4533N220330400480560620860880
CBR Burst StrengthASTM D6241N17002400320043005300600068007000
Pore Size O90ASTM D4751µm9085807570605550
Water Flow Q100ASTM D4491L/m2/s160145140120105959080
WeightASTM D5261g/m21502003004005006008001000
