Geosynthetic Clay Liner (GCL)

Geosynthetic Clay Liner

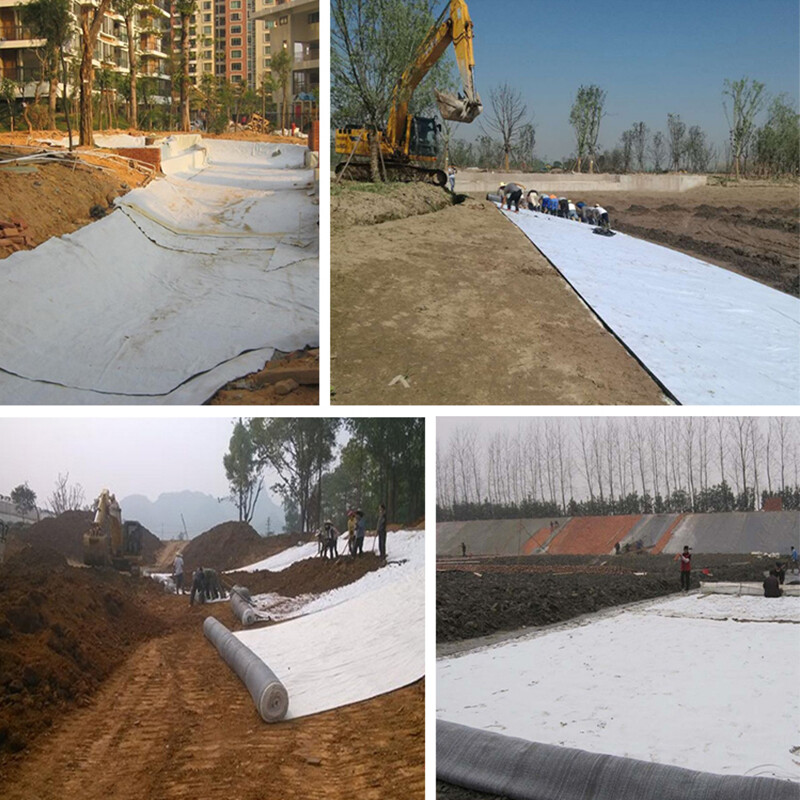

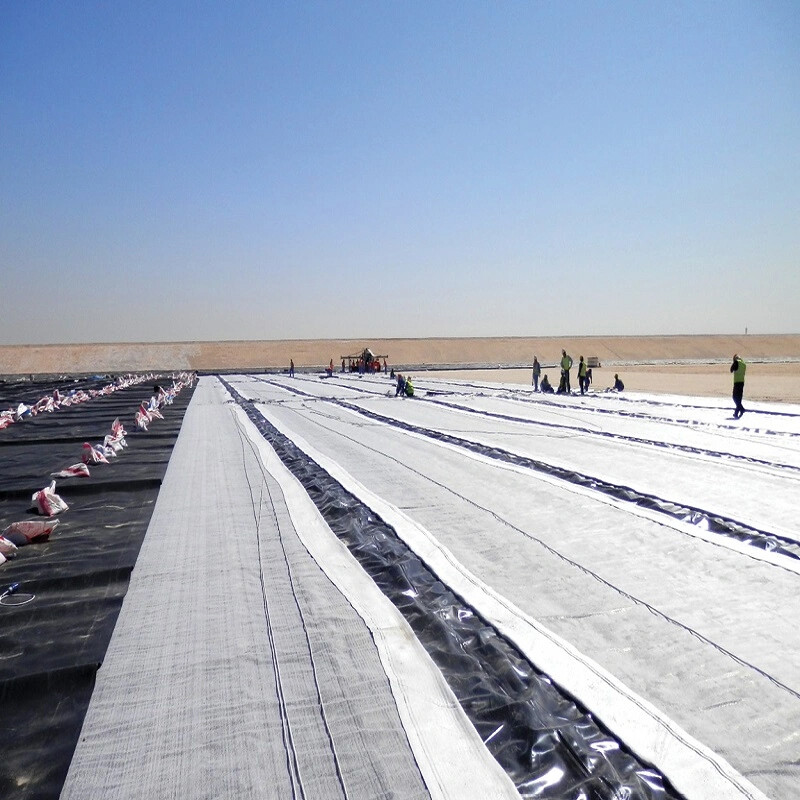

GCL (Geosynthetics Clay Liner) is a kind of anti-seepage liner, mainly used in environmental engineering waste landfill, underground reservoir, underground infrastructure construction, to solve the problem of sealing, isolation and anti-leakage.

GCL (Geosynthetics Clay Liner) is a kind of anti-seepage liner, mainly used in environmental engineering waste landfill, underground reservoir, underground infrastructure construction, to solve the problem of sealing, isolation and anti-leakage.


Specifications



  Coefficient of expansion  ASTM D 5890  ≥24mL/2g
  Fluid loss  ASTM D 5891  ≤18mL
  Bentonite quality per unit area  ASTM D 5993  ≥4.8kg/Square meter
  tensile strength  ASTM D 4632  ≥400N
  Peel strength  ASTM D 4632  ≥65N
  Indicating traffic  ASTM D 5887  ≤1 by 10 negative 8th power cubic meter/Square meter/sec
  Permeability  ASTM D 5887  ≤5 by 10 negative 9th power cm/sec
  After soaking tensile strength  ASTM D 5321  ≥24kPa typical
